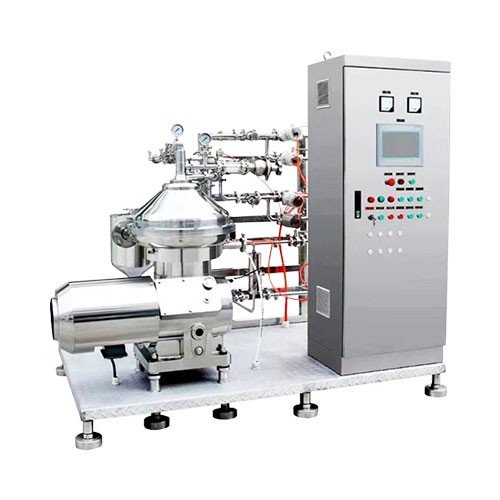

JM-D1T Disc centrifuge
Drum Diameter：~￠460mm
Drum Rotation Speed：~7076r/min
Production Capacity：1200L/H
Separation Factor：＞12000g
Feed Inlet Pressure：0～0.1Mpa
Feed Outlet Pressure：0～0.3Mpa
Operating Water Pressure：0.2mpa≤p≤0.45mpa
Basic parameters of equipment
Equipment Model | JM-D1T |
Drum Diameter | ~￠460mm |
Drum Rotation Speed | ~7076r/min |
Production Capacity | 1200L/H |
Separation Factor | ＞12000g |
Feed Inlet Pressure | 0～0.1Mpa |
Feed Outlet Pressure | 0～0.3Mpa |
Operating Water Pressure | 0.2mpa≤p≤0.45mpa |
Sludge Discharge Method | Automatic sludge discharge (partial sludge discharge or full sludge discharge) |
Sludge Discharge Time and Interval Time | According to the quality of raw materials, the sludge discharge time is adjustable from 0.01 seconds to 9.99 seconds, and the sludge discharge cycle is adjustable from 1 minute to 240 minutes. |
Motor Power | 11KW |
Bearing | SKF separator bearing |
Transmission Mode | Gear transmission structure regulated by frequency converter |
Weight | ~980kg |
Note: (The actual processing capacity varies according to the change of material concentration).
